Homework 3: Trees, Data Abstraction

Due by 11:59pm on Wednesday, July 14

Instructions

Download hw03.zip. Inside the archive, you will find a file called hw03.py, along with a copy of the ok autograder.

Submission: When you are done, submit with python3 ok --submit. You may submit more than once before the deadline; only the final submission will be scored. Check that you have successfully submitted your code on okpy.org. See Lab 0 for more instructions on submitting assignments.

Using Ok: If you have any questions about using Ok, please refer to this guide.

Readings: You might find the following references useful:

Grading: Homework is graded based on correctness. Each incorrect problem will decrease the total score by one point. There is a homework recovery policy as stated in the syllabus. This homework is out of 3 points.

Required Questions

Abstraction

Mobiles

Acknowledgements. This mobile example is based on a classic problem from MIT Structure and Interpretation of Computer Programs, Section 2.2.2.

Mobile example

We are making a planetarium mobile. A mobile is a type of hanging sculpture. A binary mobile consists of two arms. Each arm is a rod of a certain length, from which hangs either a planet or another mobile. For example, the below diagram shows the left and right arms of Mobile A, and what hangs at the ends of each of those arms.

Labeled Mobile example

We will represent a binary mobile using the data abstractions below.

  • A mobile must have both a left arm and a right arm.
  • An arm has a positive length and must have something hanging at the end, either a mobile or planet.
  • A planet has a positive size, and nothing hanging from it.

Arms-length recursion (sidenote)

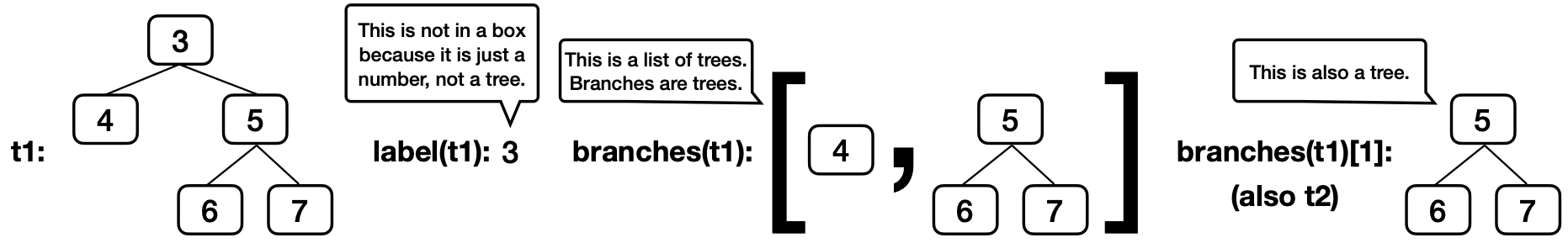

Before we get started, a quick comment on recursion with tree data structures. Consider the following function.

def min_depth(t):
    """A simple function to return the distance between t's root and its closest leaf"""
    if is_leaf(t):
        return 0 # Base case---the distance between a node and itself is zero
    h = float('inf') # Python's version of infinity
    for b in branches(t):
        if is_leaf(b): return 1 # !!!
        h = min(h, 1 + min_depth(b))
    return h

The line flagged with !!! is an "arms-length" recursion violation. Although our code works correctly when it is present, by performing this check we are doing work that should be done by the next level of recursion—we already have an if-statement that handles any inputs to min_depth that are leaves, so we should not include this line to eliminate redundancy in our code.

def min_depth(t):
    """A simple function to return the distance between t's root and its closest leaf"""
    if is_leaf(t):
        return 0
    h = float('inf')
    for b in branches(t):
        # Still works fine!
        h = min(h, 1 + min_depth(b))
    return h

Arms-length recursion is not only redundant but often complicates our code and obscures the functionality of recursive functions, making writing recursive functions much more difficult. We always want our recursive case to be handling one and only one recursive level. We may or may not be checking your code periodically for things like this.

Q1: Weights

Implement the planet data abstraction by completing the planet constructor and the size selector so that a planet is represented using a two-element list where the first element is the string 'planet' and the second element is its size. The total_weight example is provided to demonstrate use of the mobile, arm, and planet abstractions.

def mobile(left, right):
    """Construct a mobile from a left arm and a right arm."""
    assert is_arm(left), "left must be a arm"
    assert is_arm(right), "right must be a arm"
    return ['mobile', left, right]

def is_mobile(m):
    """Return whether m is a mobile."""
    return type(m) == list and len(m) == 3 and m[0] == 'mobile'

def left(m):
    """Select the left arm of a mobile."""
    assert is_mobile(m), "must call left on a mobile"
    return m[1]

def right(m):
    """Select the right arm of a mobile."""
    assert is_mobile(m), "must call right on a mobile"
    return m[2]
def arm(length, mobile_or_planet):
    """Construct a arm: a length of rod with a mobile or planet at the end."""
    assert is_mobile(mobile_or_planet) or is_planet(mobile_or_planet)
    return ['arm', length, mobile_or_planet]

def is_arm(s):
    """Return whether s is a arm."""
    return type(s) == list and len(s) == 3 and s[0] == 'arm'

def length(s):
    """Select the length of a arm."""
    assert is_arm(s), "must call length on a arm"
    return s[1]

def end(s):
    """Select the mobile or planet hanging at the end of a arm."""
    assert is_arm(s), "must call end on a arm"
    return s[2]
def planet(size):
    """Construct a planet of some size."""
    assert size > 0
    "*** YOUR CODE HERE ***"

def size(w):
    """Select the size of a planet."""
    assert is_planet(w), 'must call size on a planet'
    "*** YOUR CODE HERE ***"

def is_planet(w):
    """Whether w is a planet."""
    return type(w) == list and len(w) == 2 and w[0] == 'planet'
def examples():
    t = mobile(arm(1, planet(2)),
               arm(2, planet(1)))
    u = mobile(arm(5, planet(1)),
               arm(1, mobile(arm(2, planet(3)),
                              arm(3, planet(2)))))
    v = mobile(arm(4, t), arm(2, u))
    return (t, u, v)

def total_weight(m):
    """Return the total weight of m, a planet or mobile.

    >>> t, u, v = examples()
    >>> total_weight(t)
    3
    >>> total_weight(u)
    6
    >>> total_weight(v)
    9
    >>> from construct_check import check
    >>> # checking for abstraction barrier violations by banning indexing
    >>> check(HW_SOURCE_FILE, 'total_weight', ['Index'])
    True
    """
    if is_planet(m):
        return size(m)
    else:
        assert is_mobile(m), "must get total weight of a mobile or a planet"
        return total_weight(end(left(m))) + total_weight(end(right(m)))

Use Ok to test your code:

python3 ok -q total_weight

Q2: Balanced

Implement the balanced function, which returns whether m is a balanced mobile. A mobile is balanced if two conditions are met:

  1. The torque applied by its left arm is equal to that applied by its right arm. The torque of the left arm is the length of the left rod multiplied by the total weight hanging from that rod. Likewise for the right. For example, if the left arm has a length of 5, and there is a mobile hanging at the end of the left arm of weight 10, the torque on the left side of our mobile is 50.
  2. Each of the mobiles hanging at the end of its arms is balanced.

Planets themselves are balanced, as there is nothing hanging off of them.

def balanced(m):
    """Return whether m is balanced.

    >>> t, u, v = examples()
    >>> balanced(t)
    True
    >>> balanced(v)
    True
    >>> w = mobile(arm(3, t), arm(2, u))
    >>> balanced(w)
    False
    >>> balanced(mobile(arm(1, v), arm(1, w)))
    False
    >>> balanced(mobile(arm(1, w), arm(1, v)))
    False
    >>> from construct_check import check
    >>> # checking for abstraction barrier violations by banning indexing
    >>> check(HW_SOURCE_FILE, 'balanced', ['Index'])
    True
    """
    "*** YOUR CODE HERE ***"

Use Ok to test your code:

python3 ok -q balanced

Q3: Totals

Implement totals_tree, which takes a mobile (or planet) and returns a tree whose root is the total weight of the input. For a planet, totals_tree should return a leaf. For a mobile, totals_tree should return a tree whose label is that mobile's total weight, and whose branches are totals_trees for the ends of its arms. As a reminder, the description of the tree data abstraction can be found here.

def totals_tree(m):
    """Return a tree representing the mobile with its total weight at the root.

    >>> t, u, v = examples()
    >>> print_tree(totals_tree(t))
    3
      2
      1
    >>> print_tree(totals_tree(u))
    6
      1
      5
        3
        2
    >>> print_tree(totals_tree(v))
    9
      3
        2
        1
      6
        1
        5
          3
          2
    >>> from construct_check import check
    >>> # checking for abstraction barrier violations by banning indexing
    >>> check(HW_SOURCE_FILE, 'totals_tree', ['Index'])
    True
    """
    "*** YOUR CODE HERE ***"

Use Ok to test your code:

python3 ok -q totals_tree

Trees

Q4: Replace Loki at Leaf

Define replace_loki_at_leaf, which takes a tree t and a value lokis_replacement. replace_loki_at_leaf returns a new tree that's the same as t except that every leaf label equal to "loki" has been replaced with lokis_replacement.

If you want to learn about the Norse mythology referenced in this problem, you can read about it here.

def replace_loki_at_leaf(t, lokis_replacement):
    """Returns a new tree where every leaf value equal to "loki" has
    been replaced with lokis_replacement.

    >>> yggdrasil = tree('odin',
    ...                  [tree('balder',
    ...                        [tree('loki'),
    ...                         tree('freya')]),
    ...                   tree('frigg',
    ...                        [tree('loki')]),
    ...                   tree('loki',
    ...                        [tree('sif'),
    ...                         tree('loki')]),
    ...                   tree('loki')])
    >>> laerad = copy_tree(yggdrasil) # copy yggdrasil for testing purposes
    >>> print_tree(replace_loki_at_leaf(yggdrasil, 'freya'))
    odin
      balder
        freya
        freya
      frigg
        freya
      loki
        sif
        freya
      freya
    >>> laerad == yggdrasil # Make sure original tree is unmodified
    True
    """
    "*** YOUR CODE HERE ***"

Use Ok to test your code:

python3 ok -q replace_loki_at_leaf

Q5: Has Path

Write a function has_path that takes in a tree t and a string word. It returns True if there is a path that starts from the root where the entries along the path spell out the word, and False otherwise. (This data structure is called a trie, and it has a lot of cool applications!---think autocomplete). You may assume that every node's label is exactly one character.

def has_path(t, word):
    """Return whether there is a path in a tree where the entries along the path
    spell out a particular word.

    >>> greetings = tree('h', [tree('i'),
    ...                        tree('e', [tree('l', [tree('l', [tree('o')])]),
    ...                                   tree('y')])])
    >>> print_tree(greetings)
    h
      i
      e
        l
          l
            o
        y
    >>> has_path(greetings, 'h')
    True
    >>> has_path(greetings, 'i')
    False
    >>> has_path(greetings, 'hi')
    True
    >>> has_path(greetings, 'hello')
    True
    >>> has_path(greetings, 'hey')
    True
    >>> has_path(greetings, 'bye')
    False
    >>> has_path(greetings, 'hint')
    False
    """
    assert len(word) > 0, 'no path for empty word.'
    "*** YOUR CODE HERE ***"

Use Ok to test your code:

python3 ok -q has_path

Q6: Preorder

Define the function preorder, which takes in a tree as an argument and returns a list of all the entries in the tree in the order that print_tree would print them.

The following diagram shows the order that the nodes would get printed, with the arrows representing function calls.

preorder

Note: This ordering of the nodes in a tree is called a preorder traversal.

def preorder(t):
    """Return a list of the entries in this tree in the order that they
    would be visited by a preorder traversal (see problem description).

    >>> numbers = tree(1, [tree(2), tree(3, [tree(4), tree(5)]), tree(6, [tree(7)])])
    >>> preorder(numbers)
    [1, 2, 3, 4, 5, 6, 7]
    >>> preorder(tree(2, [tree(4, [tree(6)])]))
    [2, 4, 6]
    """
    "*** YOUR CODE HERE ***"

Use Ok to test your code:

python3 ok -q preorder

Extra Questions

Acknowledgements. This interval arithmetic example is based on a classic problem from Structure and Interpretation of Computer Programs, Section 2.1.4.

Introduction. Alyssa P. Hacker is designing a system to help people solve engineering problems. One feature she wants to provide in her system is the ability to manipulate inexact quantities (such as measurements from physical devices) with known precision, so that when computations are done with such approximate quantities the results will be numbers of known precision. For example, if a measured quantity x lies between two numbers a and b, Alyssa would like her system to use this range in computations involving x.

Alyssa's idea is to implement interval arithmetic as a set of arithmetic operations for combining "intervals" (objects that represent the range of possible values of an inexact quantity). The result of adding, subracting, multiplying, or dividing two intervals is also an interval, one that represents the range of the result.

Alyssa suggests the existence of an abstraction called an "interval" that has two endpoints: a lower bound and an upper bound. She also presumes that, given the endpoints of an interval, she can create the interval using the constructor of an Abstract Data Type. Using this constructor and the appropriate selectors, she defines the following operations:

def str_interval(x):
    """Return a string representation of interval x.
    """
    return '{0} to {1}'.format(lower_bound(x), upper_bound(x))

def add_interval(x, y):
    """Return an interval that contains the sum of any value in interval x and
    any value in interval y."""
    lower = lower_bound(x) + lower_bound(y)
    upper = upper_bound(x) + upper_bound(y)
    return interval(lower, upper)

Q7: Interval Abstraction

Alyssa's program is incomplete because she has not specified the implementation of the interval abstraction. She has implemented the constructor for you; fill in the implementation of the selectors.

def interval(a, b):
    """Construct an interval from a to b."""
    return [a, b]

def lower_bound(x):
    """Return the lower bound of interval x."""
    "*** YOUR CODE HERE ***"

def upper_bound(x):
    """Return the upper bound of interval x."""
    "*** YOUR CODE HERE ***"

Use Ok to unlock and test your code:

python3 ok -q interval -u
python3 ok -q interval

Louis Reasoner has also provided an implementation of interval multiplication. Beware: there are some data abstraction violations, so help him fix his code before someone sets it on fire: https://youtu.be/QwoghxwETng

def mul_interval(x, y):
    """Return the interval that contains the product of any value in x and any
    value in y."""
    p1 = x[0] * y[0]
    p2 = x[0] * y[1]
    p3 = x[1] * y[0]
    p4 = x[1] * y[1]
    return [min(p1, p2, p3, p4), max(p1, p2, p3, p4)]

Use Ok to unlock and test your code:

python3 ok -q mul_interval -u
python3 ok -q mul_interval

Q8: Sub Interval

Using reasoning analogous to Alyssa's, define a subtraction function for intervals. Try to reuse functions that have already been implemented if you find yourself repeating code.

def sub_interval(x, y):
    """Return the interval that contains the difference between any value in x
    and any value in y."""
    "*** YOUR CODE HERE ***"

Use Ok to unlock and test your code:

python3 ok -q sub_interval -u
python3 ok -q sub_interval

Q9: Div Interval

Alyssa implements division below by multiplying by the reciprocal of y. Ben Bitdiddle, an expert systems programmer, looks over Alyssa's shoulder and comments that it is not clear what it means to divide by an interval that spans zero. Add an assert statement to Alyssa's code to ensure that no such interval is used as a divisor:

def div_interval(x, y):
    """Return the interval that contains the quotient of any value in x divided by
    any value in y. Division is implemented as the multiplication of x by the
    reciprocal of y."""
    "*** YOUR CODE HERE ***"
    reciprocal_y = interval(1/upper_bound(y), 1/lower_bound(y))
    return mul_interval(x, reciprocal_y)

Use Ok to unlock and test your code:

python3 ok -q div_interval -u
python3 ok -q div_interval

Q10: Par Diff

After considerable work, Alyssa P. Hacker delivers her finished system. Several years later, after she has forgotten all about it, she gets a frenzied call from an irate user, Lem E. Tweakit. It seems that Lem has noticed that the formula for parallel resistors can be written in two algebraically equivalent ways:

par1(r1, r2) = (r1 * r2) / (r1 + r2)

or

par2(r1, r2) = 1 / (1/r1 + 1/r2)

He has written the following two programs, each of which computes the parallel_resistors formula differently::

def par1(r1, r2):
    return div_interval(mul_interval(r1, r2), add_interval(r1, r2))

def par2(r1, r2):
    one = interval(1, 1)
    rep_r1 = div_interval(one, r1)
    rep_r2 = div_interval(one, r2)
    return div_interval(one, add_interval(rep_r1, rep_r2))

Lem complains that Alyssa's program gives different answers for the two ways of computing. This is a serious complaint.

Demonstrate that Lem is right. Investigate the behavior of the system on a variety of arithmetic expressions. Make some intervals r1 and r2, and show that par1 and par2 can give different results.

def check_par():
    """Return two intervals that give different results for parallel resistors.

    >>> r1, r2 = check_par()
    >>> x = par1(r1, r2)
    >>> y = par2(r1, r2)
    >>> lower_bound(x) != lower_bound(y) or upper_bound(x) != upper_bound(y)
    True
    """
    r1 = interval(1, 1) # Replace this line!
    r2 = interval(1, 1) # Replace this line!
    return r1, r2

Use Ok to test your code:

python3 ok -q check_par

Q11: Multiple References

Eva Lu Ator, another user, has also noticed the different intervals computed by different but algebraically equivalent expressions. She says that the problem is multiple references to the same interval.

The Multiple References Problem: a formula to compute with intervals using Alyssa's system will produce tighter error bounds if it can be written in such a form that no variable that represents an uncertain number is repeated.

Thus, she says, par2 is a better program for parallel resistances than par1 (see Q10: Par Diff for these functions!). Is she right? Why? Write a function that returns a string containing a written explanation of your answer:

Note: To make a multi-line string, you must use triple quotes """ like this """.

def multiple_references_explanation():
    return """The multiple reference problem..."""

Q12: Quadratic

Write a function quadratic that returns the interval of all values f(t) such that t is in the argument interval x and f(t) is a quadratic function:

f(t) = a*t*t + b*t + c

Make sure that your implementation returns the smallest such interval, one that does not suffer from the multiple references problem.

Hint: the derivative f'(t) = 2*a*t + b, and so the extreme point of the quadratic is -b/(2*a):

def quadratic(x, a, b, c):
    """Return the interval that is the range of the quadratic defined by
    coefficients a, b, and c, for domain interval x.

    >>> str_interval(quadratic(interval(0, 2), -2, 3, -1))
    '-3 to 0.125'
    >>> str_interval(quadratic(interval(1, 3), 2, -3, 1))
    '0 to 10'
    """
    "*** YOUR CODE HERE ***"

Use Ok to test your code:

python3 ok -q quadratic
