Discussion 13: SQL

• disc13.pdf

Switch to Pensieve:

• Everyone: Go to pensieve.co, log in with your @berkeley.edu email, and enter your group number as the room number (which was in the email that assigned you to this discussion). As long as you all enter the same number (any number), you'll all be using a shared document.

Once you're on Pensieve, you don't need to return to this page; Pensieve has all the same content (but more features). If for some reason Penseive doesn't work, return to this page and continue with the discussion.

Attendance

Your TA will come around during discussion to check you in. You can start on the worksheet before being checked in; you don't need to wait for your TA to get started.

If you didn't attend for a good reason (such as being sick), fill out this form (within 2 weeks of your discussion): attendance form

Getting Started

If there are fewer than 3 people in your group, feel free to merge your group with another group in the room.

Everybody say your name, and then share your favorite restaurant, cafe, or boba shop near campus. (Yes, Kingpin Donuts counts as a restaurant.)

Select Statements

A SELECT statement describes an output table based on input rows. To write one:

1. Describe the input rows using FROM and WHERE clauses.
2. Group those rows and determine which groups should appear as output rows using GROUP BY and HAVING clauses.
3. Format and order the output rows and columns using SELECT and ORDER BY clauses.

SELECT (Step 3) FROM (Step 1) WHERE (Step 1) GROUP BY (Step 2) HAVING (Step 2) ORDER BY (Step 3);

Step 1 may involve joining tables to form input rows that consist of two or more rows from existing tables.

The WHERE, GROUP BY, HAVING and ORDER BY clauses are optional.

Visualizing SQL

The CS61A SQL Web Interpreter is a great tool for visualizing and debugging SQL statements!

To get started, visit code.cs61a.org and hit Start SQL interpreter on the launch screen.

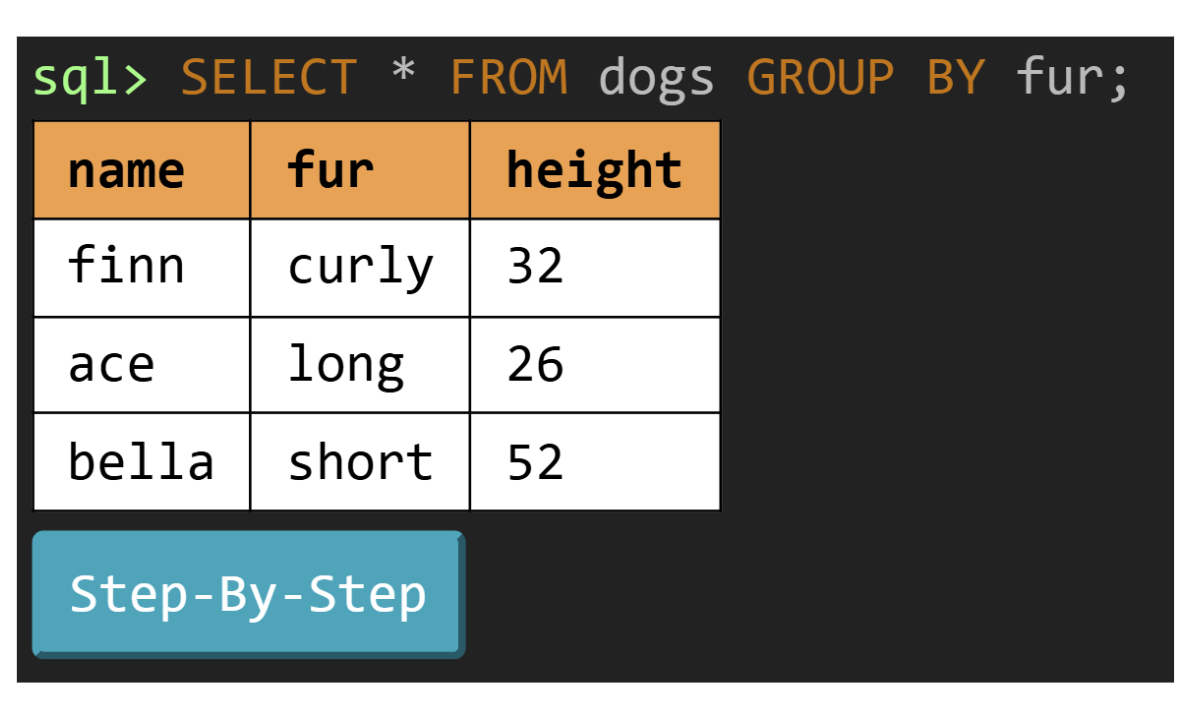

Most tables used in assignments are already available for use, so let's try to execute a SELECT statement:

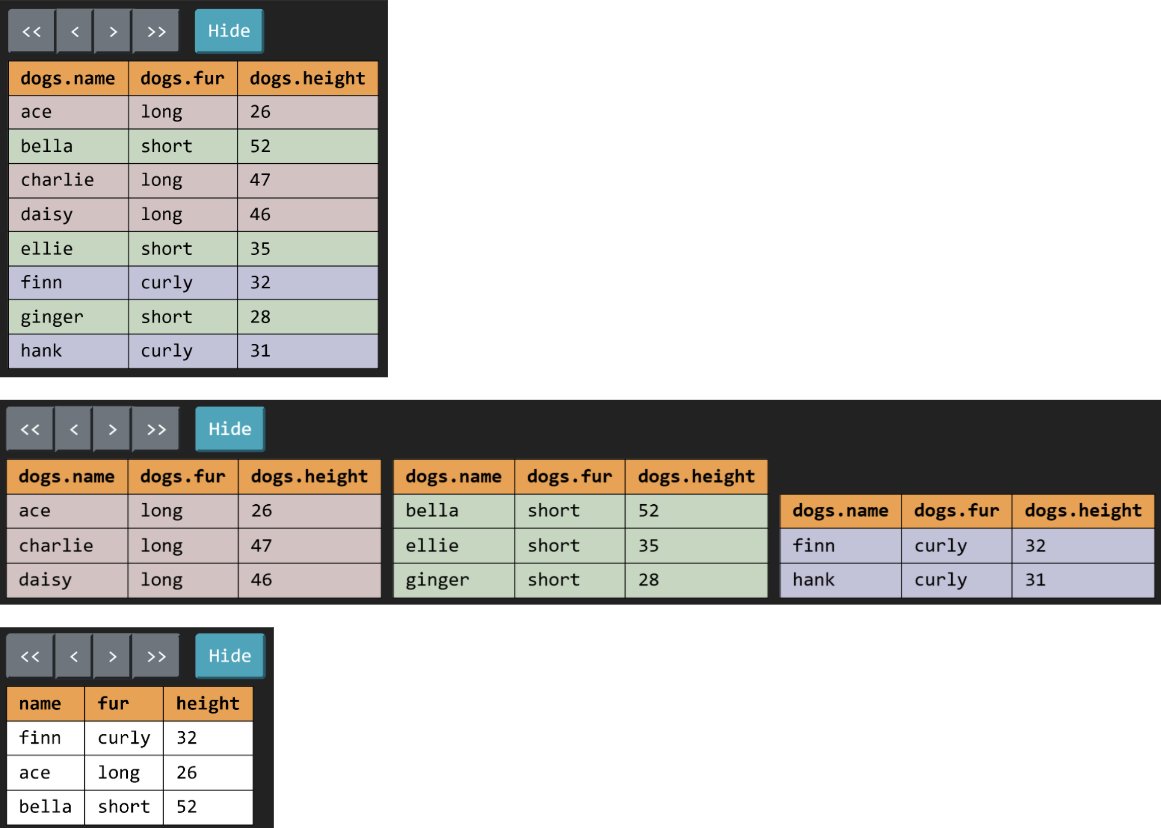

In addition to displaying a visual representation of the output table, the "Step-by-step" button lets us step through the SQL execution and visualize every transformation that takes place. For our example, clicking on the next arrow will produce the following visuals, demonstrating exactly how SQL is grouping our rows to form the final output!

Show output

Pizza Time

The pizzas table contains the names, opening, and closing hours of great pizza places in Berkeley. The meals table contains typical meal times (for college students). A pizza place is open for a meal if the meal time is at or within the open and close times.

CREATE TABLE pizzas (name TEXT, open INTEGER, close INTEGER);

INSERT INTO pizzas VALUES
  ("Artichoke", 12, 15),
  ("La Val's", 11, 22),
  ("Sliver", 11, 20),
  ("Cheeseboard", 16, 23),
  ("Emilia's", 13, 18);

CREATE TABLE meals (meal TEXT, time INTEGER);

INSERT INTO meals VALUES
  ("breakfast", 11),
  ("lunch", 13),
  ("dinner", 19),
  ("snack", 22);

Q1: Open Early

You'd like to have pizza before 13 o'clock (1pm). Create a opening table with the names of all pizza places that open before 13 o'clock, listed in reverse alphabetical order. To test what table your query outputs, press the green play button in 61A Code!

opening table:

Q2: Study Session

You're planning to study at a pizza place from the moment it opens until 14 o'clock (2pm). Create a table study with two columns, the name of each pizza place and the duration of the study session you would have if you studied there (the difference between when it opens and 14 o'clock). For pizza places that are not open before 2pm, the duration should be zero. Order the rows by decreasing duration.

Hint: Use an expression of the form MAX(_, 0) to make sure a result is not below 0.

study table:

Q3: Late Night Snack

What's still open for a late night snack? Create a late table with one column named status that has a sentence describing the closing time of each pizza place that closes at or after snack time. Important: Don't use any numbers in your SQL query! Instead, use a join to compare each restaurant's closing time to the time of a snack. The rows may appear in any order.

late table:

The || operator in SQL concatenates two strings together, just like + in Python.

Q4: Double Pizza

If two meals are more than 6 hours apart, then there's nothing wrong with going to the same pizza place for both, right? Create a double table with three columns. The first column is the earlier meal, the second column is the later meal, and the name column is the name of a pizza place. Only include rows that describe two meals that are more than 6 hours apart and a pizza place that is open for both of the meals. The rows may appear in any order.

double table:

A Final Exam About Final Exams

Note: The first question below was also used in lecture, so if you're running out of time, feel free to skip to the next one. (But it's good practice, which is why it's here.)

From the Spring 2023 final exam.

The finals table has columns hall (strings) and course (strings), and has rows for the lecture halls in which a course is holding its final exam.

The sizes table has columns room (strings) and seats (numbers), and has one row per unique room on campus containing the number of seats in that room. All lecture halls are rooms.

Q5: Total Seats

Create a table with two columns, course (strings) and total (numbers) that has a row for each course that uses at least two rooms for its final. Each row contains the name of the course and the total number of seats in final rooms for that course.

Your query should work correctly for any data that might appear in the finals and sizes table, but for the example data above the result should be:

61A|2700
61B|1700
61C|1240

Discussion Time: Talk about why the output table contains what it contains. Why are CS 10 and 70 not included? Where does the number 1700 come from?

Hint: Input Rows Hint: Groups Hint: Output Rows

Q6: Room Sharing

Write one select statement that creates a table with two columns, course (strings) and shared (numbers) that has a row for each course using at least one room that is also used by another course. Each row contains the name of the course and the total number of rooms for that course which are also used by another course.

COUNT(DISTINCT x) evaluates to the number of distinct values that appear in column x for a group. For example, SELECT COUNT(DISTINCT seats) from sizes; would output 8, because there are 9 rows in sizes, but two rows have 300 seats, so there are only 8 distinct values.

Your query should work correctly for any data that might appear in the finals and sizes table, but for the example below the result should be:

61A|3
61B|2
61C|2
70|1

Discussion Time: Talk about why the output table contains what it contains. Which are the two halls for 61B that are shared?

Hint: Input Rows Hint: Groups Hint: Output Rows

Celebrate

Today is our last discussion section! We're tentatively planning to continue this discussion format, where students work in small groups to solve problems, for 61B next semester. If you have feedback on how to improve on this format, email Kay: kayo@berkeley.edu.

If you finish early, maybe go get pizza together...
