Solution Files

Lab Checkoff Questions

Attendance

You need to submit the lab problems in addition to attending to get credit for lab.

If you miss lab for a good reason (such as sickness or a scheduling conflict) or you don't get checked in for some reason, email cs61a@berkeley.edu within one week to receive attendance credit.

>>> x = 'Hello there Oski!'
>>> x
'Hello there Oski!'
>>> len(x)
17
>>> x[6:]
'there Oski!'
>>> x[::-1]
'!iksO ereht olleH'

>>> x = 'I am not Oski.'
>>> vowel_count = 0
>>> for i in range(len(x)):
...     if x[i] in 'aeiou':
...         vowel_count += 1
>>> vowel_count
5

for <name> in <expression>:
    <suite>

for x in [-1, 4, 2, 0, 5]:
    print("Current elem:", x)

Current elem: -1
Current elem: 4
Current elem: 2
Current elem: 0
Current elem: 5

>>> d = {2: 4, 'two': ['four'], (1, 1): 4}
>>> d[2]
4
>>> d['two']
['four']
>>> d[(1, 1)]
4

>>> for k in d.keys():
...     print(k)
...
2
two
(1, 1)
>>> for v in d.values():
...     print(v)
...
4
['four']
4
>>> for k, v in d.items():
...     print(k, v)
...
2 4
two ['four']
(1, 1) 4

>>> for x in d:
...     print(x)
...
2
two
(1, 1)

>>> 'two' in d
True
>>> 4 in d
False

>>> d[3]
KeyError: 3
>>> d.get(3, "fun")
"fun"
>>> d.get(2, "fun")
4

>>> d
{2: 4, 'two': ['four'], (1, 1): 4}
>>> d[(1, 1)] = "61a"
>>> d[(1, 1)]
'61a'

>>> {3*x: 3*x + 1 for x in range(2, 5)}
{6: 7, 9: 10, 12: 13}

def virfib(n):
    if n == 0 or n == 1:
        return n
    return virfib(n - 1) + virfib(n - 2)

def rational(n, d):
    "Return a fraction n / d for integers n and d."

def numer(r):
    "Return the numerator of rational number r."

def denom(r):
    "Return the denominator of rational number r."

def mul_rationals(r1, r2):
    "Return the rational number r1 * r2."
    return rational(numer(r1) * numer(r2), denom(r1) * denom(r2))

t2 = tree(5, [tree(6), tree(7)])
t1 = tree(3, [tree(4), t2])

number_tree = tree(1,
         [tree(2),
          tree(3,
               [tree(4),
                tree(5)]),
          tree(6,
               [tree(7)])])

   1
 / | \
2  3  6
  / \  \
 4   5  7

label(branches(number_tree)[1])

def print_tree(t, indent=0):
    """Print a representation of this tree in which each node is
    indented by two spaces times its depth from the root.

    >>> print_tree(tree(1))
    1
    >>> print_tree(tree(1, [tree(2)]))
    1
      2
    >>> numbers = tree(1, [tree(2), tree(3, [tree(4), tree(5)]), tree(6, [tree(7)])])
    >>> print_tree(numbers)
    1
      2
      3
        4
        5
      6
        7
    """
    print('  ' * indent + str(label(t)))
    for b in branches(t):
        print_tree(b, indent + 1)

Required Questions

Sequences

Important: For all WWPD questions, type Function if you believe the answer is <function...>, Error if it errors, and Nothing if nothing is displayed.

Many languages provide map, filter, reduce functions for sequences. Python also provides these functions (and we'll formally introduce them later on in the course), but to help you better understand how they work, you'll be implementing these functions in the following problems.

In Python, the map and filter built-ins have slightly different behavior than the my_map and my_filter functions we are defining here.

Q1: Map

my_map takes in a one argument function fn and a sequence seq and returns a list containing fn applied to each element in seq.

Use only a single line for the body of the function. (Hint: use a list comprehension.)

def my_map(fn, seq):
    """Applies fn onto each element in seq and returns a list.
    >>> my_map(lambda x: x*x, [1, 2, 3])
    [1, 4, 9]
    >>> my_map(lambda x: abs(x), [1, -1, 5, 3, 0])
    [1, 1, 5, 3, 0]
    >>> my_map(lambda x: print(x), ['cs61a', 'summer', '2023'])
    cs61a
    summer
    2023
    [None, None, None]
    """
    return [fn(elem) for elem in seq]

Use Ok to test your code:

python3 ok -q my_map
Copy
✂️

Use Ok to run the local syntax checker (which checks that you used only a single line for the body of the function):

python3 ok -q my_map_syntax_check

Q2: Filter

my_filter takes in a predicate function pred and a sequence seq and returns a list containing all elements in seq for which pred returns True. (A predicate function is a function that takes in an argument and returns either True or False.)

Use only a single line for the body of the function. (Hint: use a list comprehension.)

def my_filter(pred, seq):
    """Keeps elements in seq only if they satisfy pred.
    >>> my_filter(lambda x: x % 2 == 0, [1, 2, 3, 4])  # new list has only even-valued elements
    [2, 4]
    >>> my_filter(lambda x: (x + 5) % 3 == 0, [1, 2, 3, 4, 5])
    [1, 4]
    >>> my_filter(lambda x: print(x), [1, 2, 3, 4, 5])
    1
    2
    3
    4
    5
    []
    >>> my_filter(lambda x: max(5, x) == 5, [1, 2, 3, 4, 5, 6, 7])
    [1, 2, 3, 4, 5]
    """
    return [elem for elem in seq if pred(elem)]

Use Ok to test your code:

python3 ok -q my_filter
Copy
✂️

Use Ok to run the local syntax checker (which checks that you used only a single line for the body of the function):

python3 ok -q my_filter_syntax_check

Q3: Reduce

my_reduce takes in a two argument function combiner and a non-empty sequence seq and combines the elements in seq into one value using combiner.

def my_reduce(combiner, seq):
    """Combines elements in seq using combiner.
    seq will have at least one element.
    >>> my_reduce(lambda x, y: x + y, [1, 2, 3, 4])  # 1 + 2 + 3 + 4
    10
    >>> my_reduce(lambda x, y: x * y, [1, 2, 3, 4])  # 1 * 2 * 3 * 4
    24
    >>> my_reduce(lambda x, y: x * y, [4])
    4
    >>> my_reduce(lambda x, y: x + 2 * y, [1, 2, 3]) # (1 + 2 * 2) + 2 * 3
    11
    """
    total = seq[0]
    for elem in seq[1:]:
        total = combiner(total, elem)
    return total

    # Alternate solution
def my_reduce_alternate(combiner, seq):
    def helper(curr, seq):
        if len(seq) == 0:
            return curr
        return helper(combiner(curr, seq[0]), seq[1:])
    return helper(seq[0], seq[1:])

Use Ok to test your code:

python3 ok -q my_reduce
Copy
✂️

Data Abstraction

Cities

Say we have a data abstraction for cities. A city has a name, a latitude coordinate, and a longitude coordinate.

Our data abstraction has one constructor:

• make_city(name, lat, lon): Creates a city object with the given name, latitude, and longitude.

We also have the following selectors in order to get the information for each city:

• get_name(city): Returns the city's name
• get_lat(city): Returns the city's latitude
• get_lon(city): Returns the city's longitude

Here is how we would use the constructor and selectors to create cities and extract their information:

>>> berkeley = make_city('Berkeley', 122, 37)
>>> get_name(berkeley)
'Berkeley'
>>> get_lat(berkeley)
122
>>> new_york = make_city('New York City', 74, 40)
>>> get_lon(new_york)
40

All of the selector and constructor functions can be found in the lab file if you are curious to see how they are implemented. However, the point of data abstraction is that, when writing a program about cities, we do not need to know the implementation.

Q4: Distance

We will now implement the function distance, which computes the distance between two city objects. Recall that the distance between two coordinate pairs (x1, y1) and (x2, y2) can be found by calculating the sqrt of (x1 - x2)**2 + (y1 - y2)**2. We have already imported sqrt for your convenience. Use the latitude and longitude of a city as its coordinates; you'll need to use the selectors to access this info!

from math import sqrt
def distance(city_a, city_b):
    """
    Returns the distance between city_a and city_b according to their
    coordinates.

    >>> city_a = make_city('city_a', 0, 1)
    >>> city_b = make_city('city_b', 0, 2)
    >>> distance(city_a, city_b)
    1.0
    >>> city_c = make_city('city_c', 6.5, 12)
    >>> city_d = make_city('city_d', 2.5, 15)
    >>> distance(city_c, city_d)
    5.0
    """
    lat_1, lon_1 = get_lat(city_a), get_lon(city_a)
    lat_2, lon_2 = get_lat(city_b), get_lon(city_b)
    return sqrt((lat_1 - lat_2)**2 + (lon_1 - lon_2)**2)

Use Ok to test your code:

python3 ok -q distance
Copy
✂️

Q5: Closer City

Next, implement closer_city, a function that takes a latitude, longitude, and two cities, and returns the name of the city that is closer to the provided latitude and longitude.

You may only use the selectors get_name get_lat get_lon, constructors make_city, and the distance function you just defined for this question.

Hint: How can you use your distance function to find the distance between the given location and each of the given cities?

def closer_city(lat, lon, city_a, city_b):
    """
    Returns the name of either city_a or city_b, whichever is closest to
    coordinate (lat, lon). If the two cities are the same distance away
    from the coordinate, consider city_b to be the closer city.

    >>> berkeley = make_city('Berkeley', 37.87, 112.26)
    >>> stanford = make_city('Stanford', 34.05, 118.25)
    >>> closer_city(38.33, 121.44, berkeley, stanford)
    'Stanford'
    >>> bucharest = make_city('Bucharest', 44.43, 26.10)
    >>> vienna = make_city('Vienna', 48.20, 16.37)
    >>> closer_city(41.29, 174.78, bucharest, vienna)
    'Bucharest'
    """
    new_city = make_city('arb', lat, lon)
    dist1 = distance(city_a, new_city)
    dist2 = distance(city_b, new_city)
    if dist1 < dist2:
         return get_name(city_a)
    return get_name(city_b)

Use Ok to test your code:

python3 ok -q closer_city
Copy
✂️

Q6: Don't violate the abstraction barrier!

Note: this question has no code-writing component (if you implemented the previous two questions correctly).

When writing functions that use a data abstraction, we should use the constructor(s) and selector(s) whenever possible instead of assuming the data abstraction's implementation. Relying on a data abstraction's underlying implementation is known as violating the abstraction barrier.

It's possible that you passed the doctests for the previous questions even if you violated the abstraction barrier. To check whether or not you did so, run the following command:

Use Ok to test your code:

python3 ok -q check_city_abstraction
Copy
✂️

The check_city_abstraction function exists only for the doctest, which swaps out the implementations of the original abstraction with something else, runs the tests from the previous two parts, then restores the original abstraction.

The nature of the abstraction barrier guarantees that changing the implementation of a data abstraction should not affect the functionality of any programs that use that data abstraction, as long as the constructors and selectors were used properly.

If you passed the Ok tests for the previous questions but not this one, the fix is simple! Just replace any code that violates the abstraction barrier with the appropriate constructor or selector.

Make sure that your functions pass the tests with both the first and the second implementations of the data abstraction and that you understand why they should work for both before moving on.

Trees

Q7: WWPD: Trees

Use Ok to test your knowledge with the following "What Would Python Display?" questions:

python3 ok -q wwpd -u

Type Error if the code errors and Nothing if nothing is displayed. Draw out the tree on the board or a piece of paper if you get stuck!

>>> from lab04 import *
>>> t = tree(1, tree(2))
Error
>>> t = tree(1, [tree(2)])
Nothing
>>> label(t)
1
>>> label(branches(t)[0])
2
>>> x = branches(t)
>>> len(x)
1
>>> is_leaf(x[0])
True
>>> branch = x[0]
>>> label(t) + label(branch)
3
>>> len(branches(branch))
0

>>> from lab04 import *
>>> b1 = tree(5, [tree(6), tree(7)])
>>> b2 = tree(8, [tree(9, [tree(10)])])
>>> t = tree(11, [b1, b2])
>>> for b in branches(t):
...     print(label(b))
5
8
>>> for b in branches(t):
...     print(is_leaf(branches(b)[0]))
...
True
False
>>> [label(b) + 100 for b in branches(t)]
[105, 108]
>>> [label(b) * label(branches(b)[0]) for b in branches(t)]
[30, 72]

Q8: Perfectly Balanced

Implement sum_tree, which returns the sum of all the labels in tree t.

def sum_tree(t):
    """Add all elements in a tree.

    >>> t = tree(4, [tree(2, [tree(3)]), tree(6)])
    >>> sum_tree(t)
    15
    """
    total = 0
    for b in branches(t):
        total += sum_tree(b)
    return label(t) + total

Use Ok to test your code:

python3 ok -q sum_tree
Copy
✂️

Then, implement balanced, which returns whether every branch of t has the same total sum and that the branches themselves are also balanced.

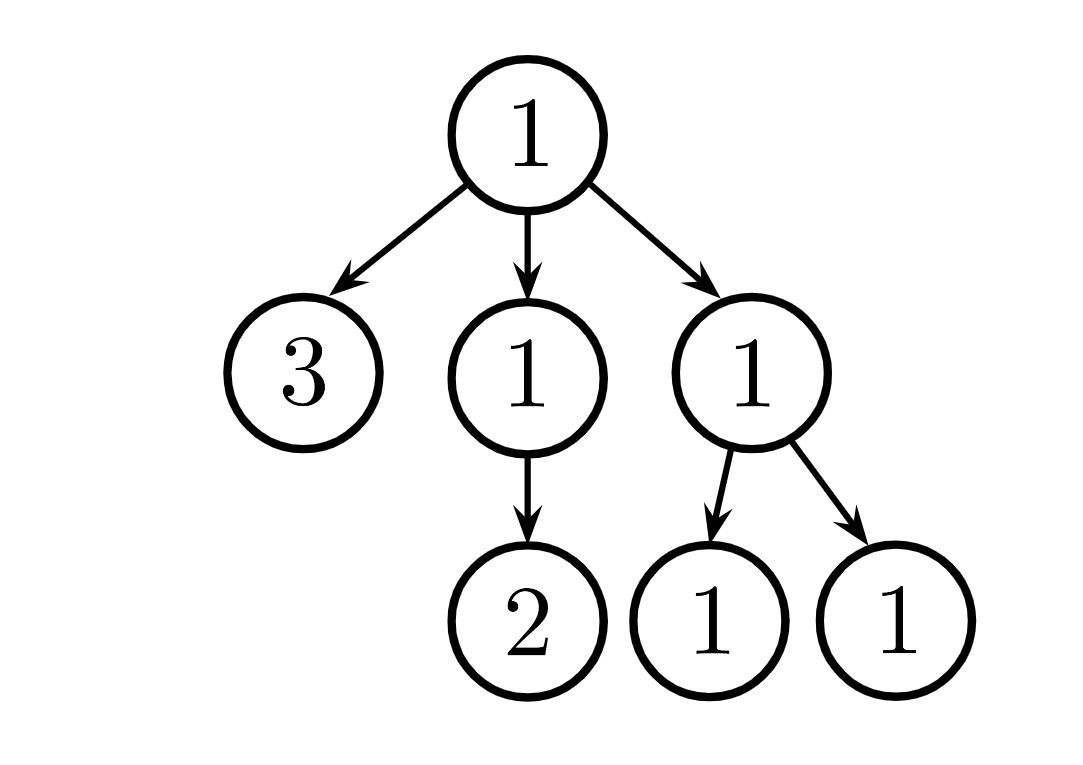

• For example, the tree above is balanced because each branch has the same total sum, and each branch is also itself balanced.

def balanced(t):
    """Checks if each branch has same sum of all elements and
    if each branch is balanced.

    >>> t = tree(1, [tree(3), tree(1, [tree(2)]), tree(1, [tree(1), tree(1)])])
    >>> balanced(t)
    True
    >>> t = tree(1, [t, tree(1)])
    >>> balanced(t)
    False
    >>> t = tree(1, [tree(4), tree(1, [tree(2), tree(1)]), tree(1, [tree(3)])])
    >>> balanced(t)
    False
    """
    for b in branches(t):
        if sum_tree(branches(t)[0]) != sum_tree(b) or not balanced(b):
            return False
    return True

Use Ok to test your code:

python3 ok -q balanced
Copy
✂️

Challenge: Solve both of these parts with just 1 line of code each.

Check Your Score Locally

You can locally check your score on each question of this assignment by running

python3 ok --score

This does NOT submit the assignment! When you are satisfied with your score, submit the assignment to Gradescope to receive credit for it.

Submit Assignment

Submit this assignment by uploading any files you've edited to the appropriate Gradescope assignment. Lab 00 has detailed instructions.

Correctly completing all questions is worth one point. Please ensure your TA has taken your attendance before leaving.

Optional Questions

These questions are optional. If you don't complete them, you will still receive credit for this assignment. They are great practice, so do them anyway!

Q9: Number of Trees

A full binary tree is a tree where each node has either 2 branches or 0 branches, but never 1 branch.

Write a function which returns the number of unique full binary tree structures that have exactly n leaves. See the doctests for visualizations of the possible full binary tree sturctures that have 1, 2, and 3 leaves.

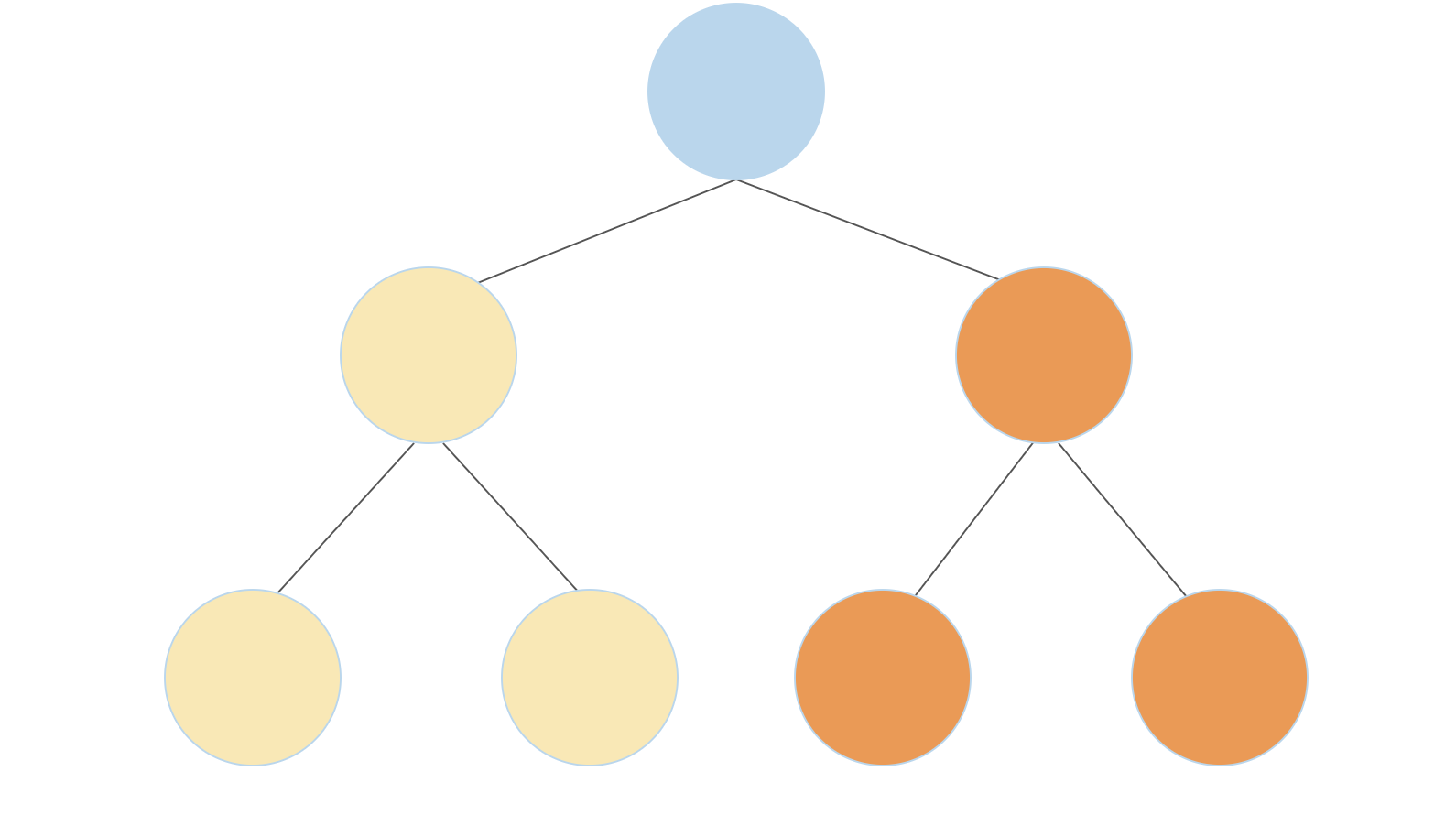

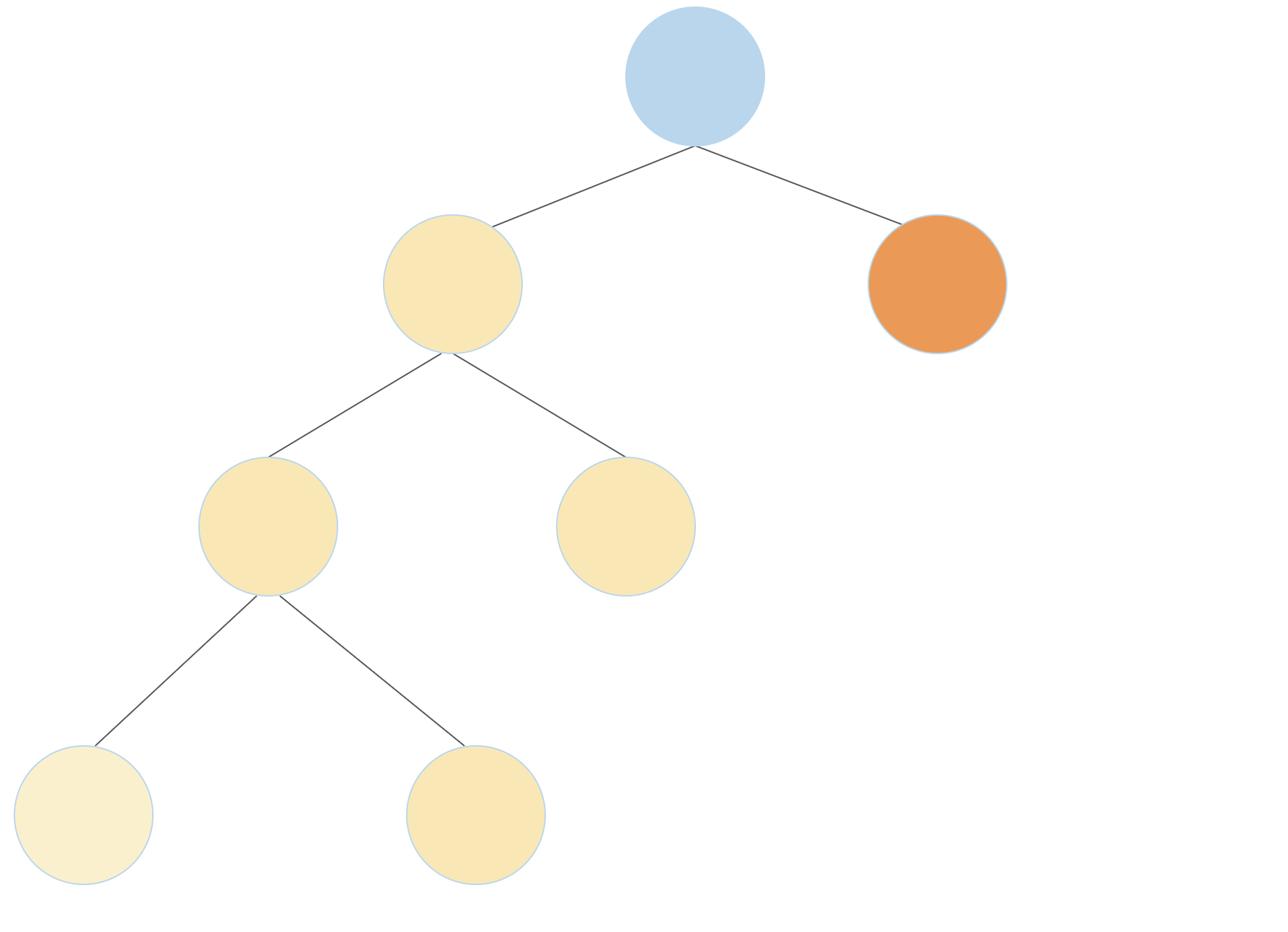

Hint: A full binary tree can be constructed by connecting two smaller full binary trees to a root node. If the two smaller full binary trees have a and b leaves, the new full binary tree will have a + b leaves. For example, as shown in the first diagram below, a full binary tree with 4 leaves can be constructed by connecting a full binary tree that has three leaves (yellow) with a full binary tree that has one leaf (orange). A full binary tree with 4 leaves can also be constructed by connecting two full binary trees with 2 leaves each (second diagram)

For those interested in combinatorics, this problem does have a closed form solution):

def num_trees(n):
    """Returns the number of unique full binary trees with exactly n leaves. E.g.,

    1   2        3       3    ...
    *   *        *       *
       / \      / \     / \
      *   *    *   *   *   *
              / \         / \
             *   *       *   *

    >>> num_trees(1)
    1
    >>> num_trees(2)
    1
    >>> num_trees(3)
    2
    >>> num_trees(8)
    429

    """
    if n == 1:
        return 1
    return sum(num_trees(k) * num_trees(n-k) for k in range(1, n))

Use Ok to test your code:

python3 ok -q num_trees
Copy
✂️

Q10: Only Paths

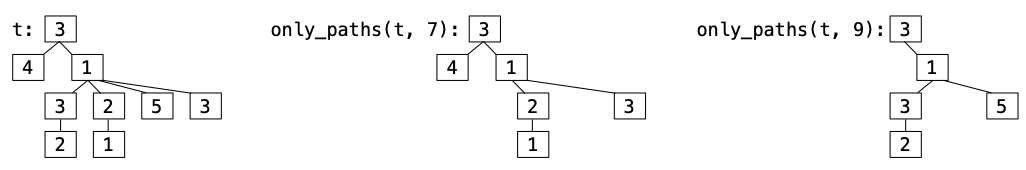

Implement only_paths, which takes a Tree of numbers t and a number n. It returns a new tree with only the nodes of t that are on a path from the root to a leaf with labels that sum to n, or None if no path sums to n.

Here is an illustration of the doctest examples involving t.

def only_paths(t, n):
    """Return a tree with only the nodes of t along paths from the root to a leaf of t
    for which the node labels of the path sum to n. If no paths sum to n, return None.

    >>> print_tree(only_paths(tree(5, [tree(2), tree(1, [tree(2)]), tree(1, [tree(1)])]), 7))
    5
      2
      1
        1
    >>> t = tree(3, [tree(4), tree(1, [tree(3, [tree(2)]), tree(2, [tree(1)]), tree(5), tree(3)])])
    >>> print_tree(only_paths(t, 7))
    3
      4
      1
        2
          1
        3
    >>> print_tree(only_paths(t, 9))
    3
      1
        3
          2
        5
    >>> print(only_paths(t, 3))
    None
    """
    if n == label(t) and is_leaf(t):
        return t
    new_branches = [only_paths(b, n - label(t)) for b in branches(t)]
    if any(new_branches):
        return tree(label(t), [b for b in new_branches if b is not None])

Use Ok to test your code:

python3 ok -q only_paths
Copy
✂️
