Discussion 4: Trees, Python Lists
Getting Started
In this discussion, don't use a Python interpreter to run code until you are confident your solution is correct. Figure things out and check your work by thinking about what your code will do. Not sure? Draw an environment diagram!
Lists
append
. Don't use those today. All you need are list literals (e.g.,
[1, 2, 3]
), item selection (e.g., s[0]
), list addition (e.g., [1] + [2, 3]
),
len
(e.g., len(s)
), and slicing (e.g., s[1:]
). Use those! There will be plenty of time for other list
operations when we introduce them later this week.
The most important thing to remember about lists is that a non-empty list s
can be split into its first element s[0]
and the rest of the list s[1:]
.
>>> s = [2, 3, 6, 4]
>>> s[0]
2
>>> s[1:]
[3, 6, 4]
There are two forms:
[<expression> for <element> in <sequence>]
[<expression> for <element> in <sequence> if <conditional>]
Here's an example that starts with [1, 2, 3, 4]
, picks out the even elements
2
and 4
using if i % 2 == 0
, then squares each of these using i*i
. The
purpose of for i
is to give a name to each element in [1, 2, 3, 4]
.
>>> [i*i for i in [1, 2, 3, 4] if i % 2 == 0]
[4, 16]
This list comprehension evaluates to a list of:
- The value of
i*i
- For each element
i
in the sequence[1, 2, 3, 4]
- For which
i % 2 == 0
In other words, this list comprehension will create a new list that contains
the square of every even element of the original list [1, 2, 3, 4]
.
We can also rewrite a list comprehension as an equivalent for
statement,
such as for the example above:
>>> result = []
>>> for i in [1, 2, 3, 4]:
... if i % 2 == 0:
... result = result + [i*i]
>>> result
[4, 16]
Q1: Even weighted
Write a function that takes a list s
and returns a new list that keeps only
the even-indexed elements of s
and multiplies them by their corresponding
index. First approach this problem with a normal for
loop (without list comprehension).
Now that you’ve done it with a for
loop, try it with a list comprehension!
Dictionaries
A dictionary is a Python data structure that maps keys to values. For a dictionary d
:
- Each key maps to exactly one value, which you can access with
d[<key>]
. - If you try
d[<key>]
but<key>
is not a valid key ind
, you'll get an error. - You can use
<key> in d
to test (True
orFalse
) whether a key is ind
. d.get(<key>, <default>)
will return the value that<key>
maps to ind
, or<default>
if<key>
is not a key ind
.- The sequence of keys or values or key-value pairs can be accessed using
d.keys()
ord.values()
ord.items()
, respectively. - Keys can be of any immutable type (like strings, numbers, and tuples) but not mutable types (like lists).
- You can use a
d
in afor
loop (such asfor k in d
). Doing so will iterate through the keys ind
.
Q2: Happy Givers
In a certain discussion section, some people exchange gifts for the holiday season.
We call two people happy givers if they give gifts to each other.
Implement a function happy_givers
, which takes in a gifts
dictionary that maps
people in the section to the person they gave a gift to. happy_givers
outputs a list of
all the happy givers in the section. The order of the list does not matter.
Note that if someone received but did not give a gift, they will not appear in the gifts
dictionary as a key. (They'll appear only as a value.)
You can assume that no one gives themself a gift.
Once you've found a solution, as a challenge, attempt to implement your solution in one line using a list comprehension.
Run in 61A CodeTrees
tree
is a data structure that represents a hierarchy of information. A file system is a good example of a tree structure. For example, within your cs61a
folder, you have folders separating your projects
, lab
assignments, and homework
. The next level is folders that separate different assignments, hw01
, lab01
, hog
, etc., and inside those are the files themselves, including the starter files and ok
. Below is an incomplete diagram of what your cs61a
directory might look like.
As you can see, unlike trees in nature, the tree abstract data type is drawn with the root at the top and the leaves at the bottom.
For a tree t
:
- Its root label can be any value, and
label(t)
returns it. - Its branches are trees, and
branches(t)
returns a list of branches. - An identical tree can be constructed with
tree(label(t), branches(t))
. - You can call functions that take trees as arguments, such as
is_leaf(t)
. - That's how you work with trees. No
t == x
ort[0]
orx in t
orlist(t)
, etc. - There's no way to change a tree (that doesn't violate an abstraction barrier).
Here's an example tree t1
, for which its branch branches(t1)[1]
is t2
.
t2 = tree(5, [tree(6), tree(7)])
t1 = tree(3, [tree(4), t2])
A path is a sequence of trees in which each is the parent of the next.
You don't need to know how tree
, label
, and branches
are implemented in
order to use them correctly, but here is the implementation from lecture.
def tree(label, branches=[]):
for branch in branches:
assert is_tree(branch), 'branches must be trees'
return [label] + list(branches)
def label(tree):
return tree[0]
def branches(tree):
return tree[1:]
def is_leaf(tree):
return not branches(tree)
def is_tree(tree):
if type(tree) != list or len(tree) < 1:
return False
for branch in branches(tree):
if not is_tree(branch):
return False
return True
Q3: Maximum Path Sum
Write a function that takes in a tree and returns the maximum sum of the values along any path in the tree. Recall that a path is from the tree's root to any leaf.
Run in 61A CodeQ4: Preorder
Define the function preorder
, which takes in a tree as an argument and
returns a list of all the entries in the tree in the order that
print_tree
would print them.

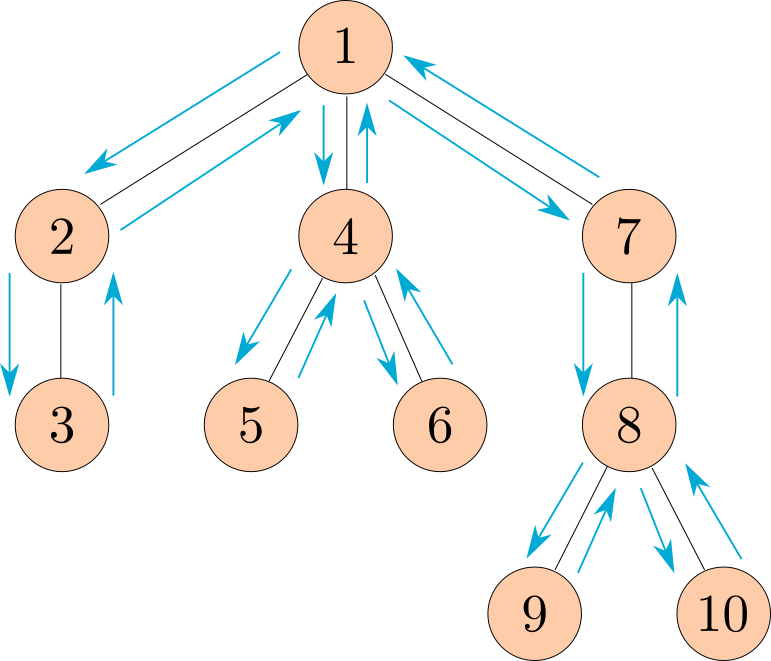

The following diagram shows the order that the nodes would get printed, with the arrows representing function calls.
Run in 61A CodeNote: This ordering of the nodes in a tree is called a preorder traversal.
Q5: Find Path
Implement find_path
, which takes a tree t
with unique labels and a value
x
. It returns a list containing the labels of the nodes along a path from the
root of t
to a node labeled x
.
If x
is not a label in t
, return None
. Assume that the labels of t
are unique.
You're done! Excellent work this week. Please be sure to fill out your TA's attendance form to get credit for this discussion!
