Discussion 12: SQL

Switch to Pensieve:

  • Everyone: Go to pensieve.co, log in with your @berkeley.edu email, and enter your group number as the room number (which was in the email that assigned you to this discussion). As long as you all enter the same number (any number), you'll all be using a shared document.

Once you're on Pensieve, you don't need to return to this page; Pensieve has all the same content (but more features). If for some reason Penseive doesn't work, return to this page and continue with the discussion.

Attendance

Fill out this discussion attendance form with the unique number you receive from your TA. As soon as you get your number, fill out the form, selecting arrival (not departure -- that's later).

Getting Started

If there are fewer than 3 people in your group, feel free to merge your group with another group in the room.

Everybody say your name, and then share your favorite restaurant, cafe, or boba shop near campus. (Yes, Kingpin Donuts counts as a restaurant.)

Select Statements

A SELECT statement describes an output table based on input rows. To write one:

  1. Describe the input rows using FROM and WHERE clauses.
  2. Group those rows and determine which groups should appear as output rows using GROUP BY and HAVING clauses.
  3. Format and order the output rows and columns using SELECT and ORDER BY clauses.

SELECT (Step 3) FROM (Step 1) WHERE (Step 1) GROUP BY (Step 2) HAVING (Step 2) ORDER BY (Step 3);

Step 1 may involve joining tables to form input rows that consist of two or more rows from existing tables.

The WHERE, GROUP BY, HAVING and ORDER BY clauses are optional.

Visualizing SQL

The CS61A SQL Web Interpreter is a great tool for visualizing and debugging SQL statements!

To get started, visit code.cs61a.org and hit Start SQL interpreter on the launch screen.

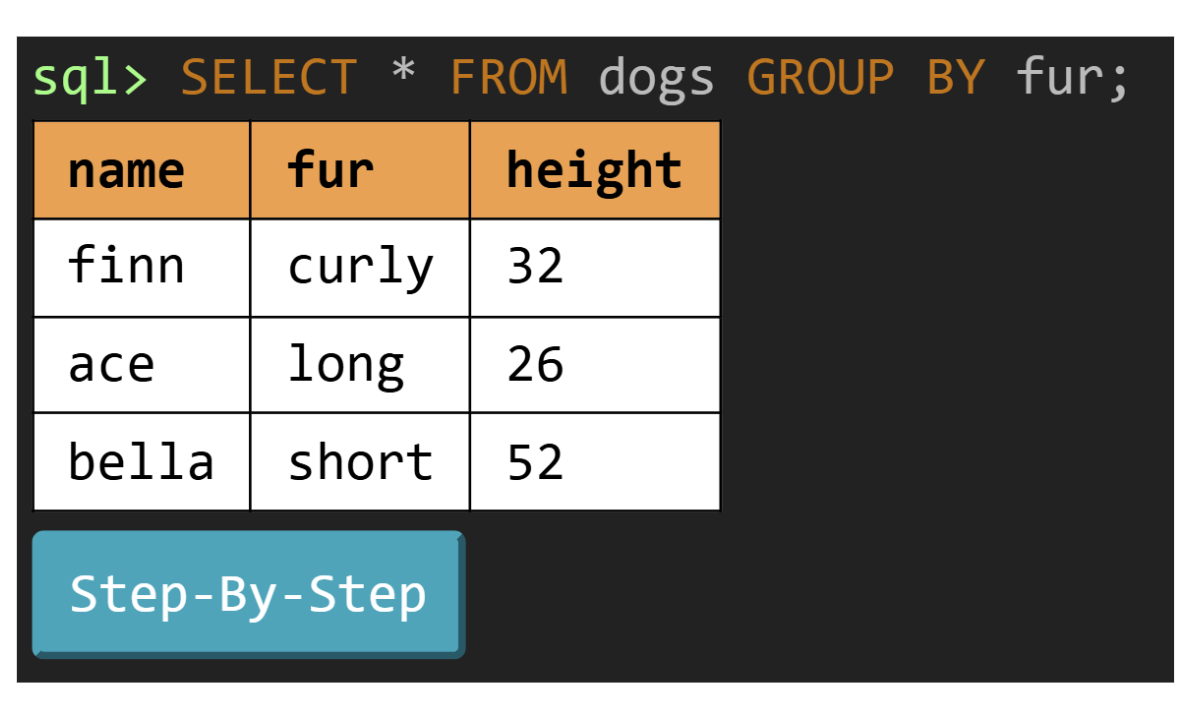

Most tables used in assignments are already available for use, so let's try to execute a SELECT statement:

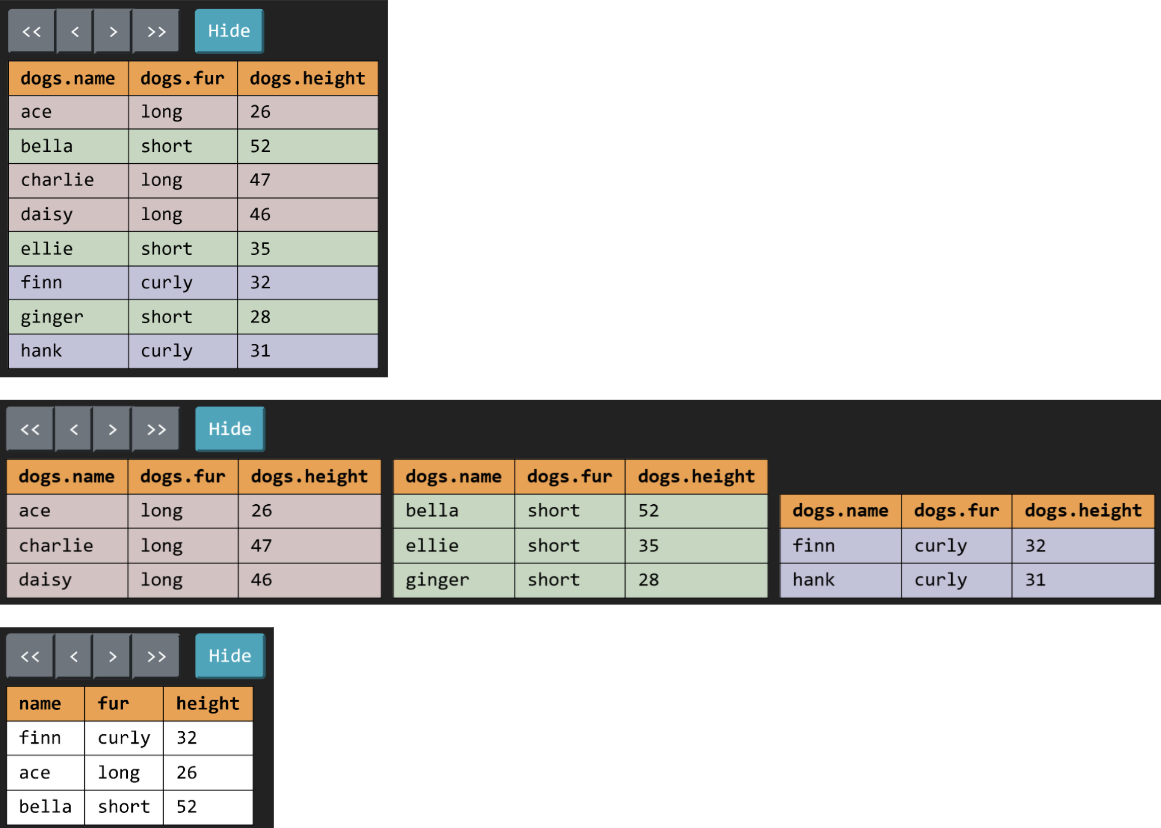

In addition to displaying a visual representation of the output table, the "Step-by-step" button lets us step through the SQL execution and visualize every transformation that takes place. For our example, clicking on the next arrow will produce the following visuals, demonstrating exactly how SQL is grouping our rows to form the final output!

Pizza Time

The pizzas table contains the names, opening, and closing hours of great pizza places in Berkeley. The meals table contains typical meal times (for college students). A pizza place is open for a meal if the meal time is at or within the open and close times.

CREATE TABLE pizzas AS
  SELECT "Artichoke" AS name, 12 AS open, 15 AS close UNION
  SELECT "La Val's"         , 11        , 22          UNION
  SELECT "Sliver"           , 11        , 20          UNION
  SELECT "Cheeseboard"      , 16        , 23          UNION
  SELECT "Emilia's"         , 13        , 18;

CREATE TABLE meals AS
  SELECT "breakfast" AS meal, 11 AS time UNION
  SELECT "lunch"            , 13         UNION
  SELECT "dinner"           , 19         UNION
  SELECT "snack"            , 22;

Q1: Open Early

You'd like to have pizza before 13 o'clock (1pm). Create a opening table with the names of all pizza places that open before 13 o'clock, listed in reverse alphabetical order.

opening table:

name
Sliver
La Val's
Artichoke
Run in 61A Code
To order by name in reverse alphabitical order, write ORDER BY name DESC.

Q2: Study Session

You're planning to study at a pizza place from the moment it opens until 14 o'clock (2pm). Create a table study with two columns, the name of each pizza place and the duration of the study session you would have if you studied there (the difference between when it opens and 14 o'clock). For pizza places that are not open before 2pm, the duration should be zero. Order the rows by decreasing duration.

Hint: Use an expression of the form MAX(_, 0) to make sure a result is not below 0.

study table:

name duration
La Val's 3
Sliver 3
Artichoke 2
Emilia's 1
Cheeseboard 0
Run in 61A Code
To order by decreasing duration, first name the column with SELECT ..., ... AS duration ..., then ORDER BY duration DESC.

Q3: Late Night Snack

What's still open for a late night snack? Create a late table with one column named status that has a sentence describing the closing time of each pizza place that closes at or after snack time. Important: Don't use any numbers in your SQL query! Instead, use a join to compare each restaurant's closing time to the time of a snack. The rows may appear in any order.

late table:

status
Cheeseboard closes at 23
La Val's closes at 22

The || operator in SQL concatenates two strings together, just like + in Python.

Run in 61A Code
To compare a pizza place's close time to the time of a snack:
  • join the pizzas and meals tables using FROM pizzas, meals
  • use only rows where the meal is a "snack"
  • compare the time of the snack to the close of the pizza place.
Use name || " closes at " || close to create the sentences in the resulting table. The || operator concatenates values into strings.

Q4: Double Pizza

If two meals are more than 6 hours apart, then there's nothing wrong with going to the same pizza place for both, right? Create a double table with three columns. The first column is the earlier meal, the second column is the later meal, and the name column is the name of a pizza place. Only include rows that describe two meals that are more than 6 hours apart and a pizza place that is open for both of the meals. The rows may appear in any order.

double table:

first second name
breakfast dinner La Val's
breakfast dinner Sliver
breakfast snack La Val's
lunch snack La Val's
Run in 61A Code
Use FROM meals AS a, meals AS b, pizzas so that each row has info about two meals and a pizza place. Then you can write a WHERE clause that compares both a.time and b.time to open and close and each other to ensure all the relevant conditions are met.

A Final Exam About Final Exams

Note: The first question below was also used in lecture, so if you're running out of time, feel free to skip to the next one. (But it's good practice, which is why it's here.)

From the Spring 2023 final exam.

The finals table has columns hall (strings) and course (strings), and has rows for the lecture halls in which a course is holding its final exam.

The sizes table has columns room (strings) and seats (numbers), and has one row per unique room on campus containing the number of seats in that room. All lecture halls are rooms.

Q5: Total Seats

Create a table with two columns, course (strings) and total (numbers) that has a row for each course that uses at least two rooms for its final. Each row contains the name of the course and the total number of seats in final rooms for that course.

Your query should work correctly for any data that might appear in the finals and sizes table, but for the example below the result should be:

61A|2400
61B|1700
61C|1200

Discussion Time: Talk about why the output table contains what it contains. Why are CS 10 and 70 not included? Where does the number 1700 come from?

Run in 61A Code

Join the finals and sizes tables, but make sure that each joined row is coherent by restricting to rows in which the hall (from finals) and room (from sizes) are the same value.

Since the output has one row per course, but the same course appears in multiple rows of the finals table, group by course.

COUNT(*) evaluates to the number of input rows in a group, which in this case will be the number of rooms used by a course.

The expression SUM(seats) evaluates to the sum of the seats values (from the sizes table) for a group. If there is one group per course, then this will be the sum of seats in all lecture halls used for that course.

Q6: Room Sharing

Write one select statement that creates a table with two columns, course (strings) and shared (numbers) that has a row for each course using at least one room that is also used by another course. Each row contains the name of the course and the total number of rooms for that course which are also used by another course.

Reminder: COUNT(DISTINCT x) evaluates to the number of distinct values that appear in column x for a group.

Your query should work correctly for any data that might appear in the finals and sizes table, but for the example below the result should be:

61A|3
61B|2
61C|2
70|1

Discussion Time: Talk about why the output table contains what it contains. Which are the two halls for 61B that are shared?

Run in 61A Code

Join finals with finals, but make sure that the joined rows are for difference courses using the same lecture hall.

Group by the first course column to make one group (and one output row) per course. A HAVING clause is not needed if the WHERE clause has already limited the input rows to those with two different courses using the same hall.

Count the distinct number of hall values for a course: COUNT(DISTINCT ___). The DISTINCT restriction is needed so that a hall used by more than two courses is not counted more than once.

Document the Occasion

Let your TA know you're done so that you can each get a departure number, and fill out the attendance form again (this time selecting departure instead of arrival). If your TA isn't in the room, go find them next door.

If you finish early, maybe go get pizza together...
